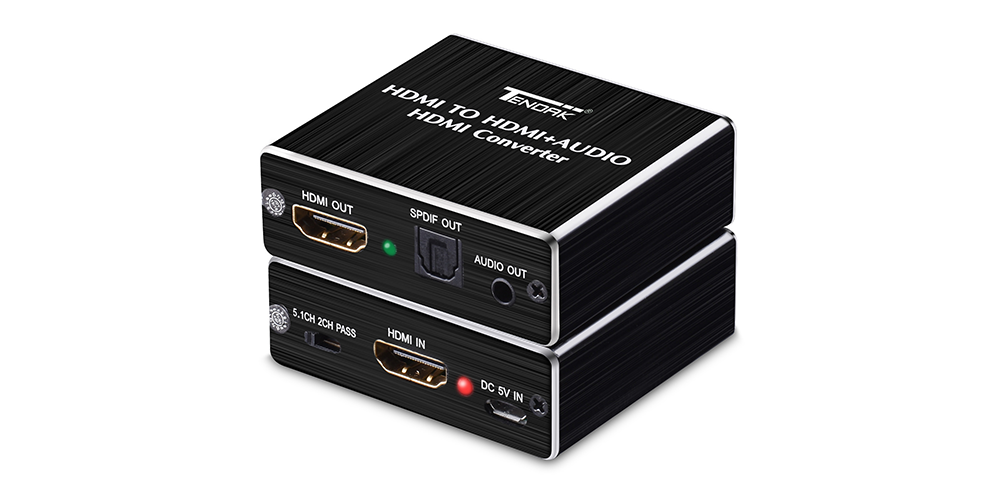

This 4K x 2K HDMI audio extractor not only to meet the ideal image of the HDTV but also to meet the need for an extract audio from HDMI source. It can extract the digital audio signal embedded in HDMI source and convert it through 3.5mm analog audio output and SPDIF output at the same time. The SPDIF output both can support 2CH audio or 5.1CH audio including Dolby Digitla 5.1CH and DTS 5.1CH.
One HDMI Input to one HDMI Output(Pass Mode), SPDIF (Optical) digital audio output(2CH/5.1CH Mode), and 3.5mm stereo audio output(2CH Mode); It comes 3.5mm to RCA stereo audio cable. DOES NOT support astro headseat
SPDIF and L/R audio support output separately to amplifier without connecting TV/Monitor; Input resolution up to 4K x 2K, 1080P/60Hz, 3D/24Hz. For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), Please USE PHONE ADAPTER to charger it (Just come with USB Cable)
Supports 24 bit /deep color 30bit, 36bit per channel (36bit all channel) deep color; Supports Video EDID Pass Through, Audio EDID Settings: Pass, 2CH and 5.1CH
3.5mm audio output supports 2CH PCM stereo audio only. SPDIF Output supports 2CH PCM, 5.1CH Dolby Digital, DTS. The HDMI audio extractor will output the Dolby True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio formats. If your Amplifier or soundbar can't support these audio formats, there will no audio on your soundbar or amplifier, so please set audio format on HDMI Source to PCM/ LPCM audio format.
Suitable for various HDMI source devices like Roku or Chromecast without dedicated audio output as well as Blu-ray/ DVD/ HD player, cable/satellite box, Amazon Fire TV, Apple TV, PS3/4, Xbox, PC/laptop, HD camera, HD DVR etc
Specification: Input Port: 1 x HDMI IN, 1 x Micro USB Power Port, 3 x EDID Audio(Pass/2CH/5.1CH) Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack HDMI resolution :4K x 2K, 24/50/60fs/1080P/1080i/720p/576p/576i/480p/480i Support video color format: 24bit/deep color 30bit,36bit Max bandwidth: 225MHz Max baud rate: 6.75Gbps Max working current: 190mA
Three switing audio EDID settings: Pass: HDMI pass mode. The audio and video can be convertered from the HDMI output. SPDIF and L/R will not output any sound. 2CH Mode: Extract the digital 2CH PCM stereo audio signal from the HDMI input and the HDMI/ SPDIF and L/R output stereo audio. 5.1CH Mode: Extract 5.1 Dolby Digital / DTS and output via HDMI/ SPDIF.
Kindly Note: 1.Not Support Dolby Digital Plus audio, it is support DTS Audio and Dolby digital audio. 2.USB POWER - USB POWER - For some devices with low power HDMI ports(Such as PS4, PS4 Slim and other Sony Device), Please USE PHONE ADAPTER to charger it (Just come with USB Cable) 3.NOT SUPPORT copyright protected content; Astro game headsets
Package Contents: 1 X HDMI Audio Extractor 1 X 3.5mm to RCA Stereo Audio Cable 1 x Micro USB cable 1 X User Manual
